BOYKO

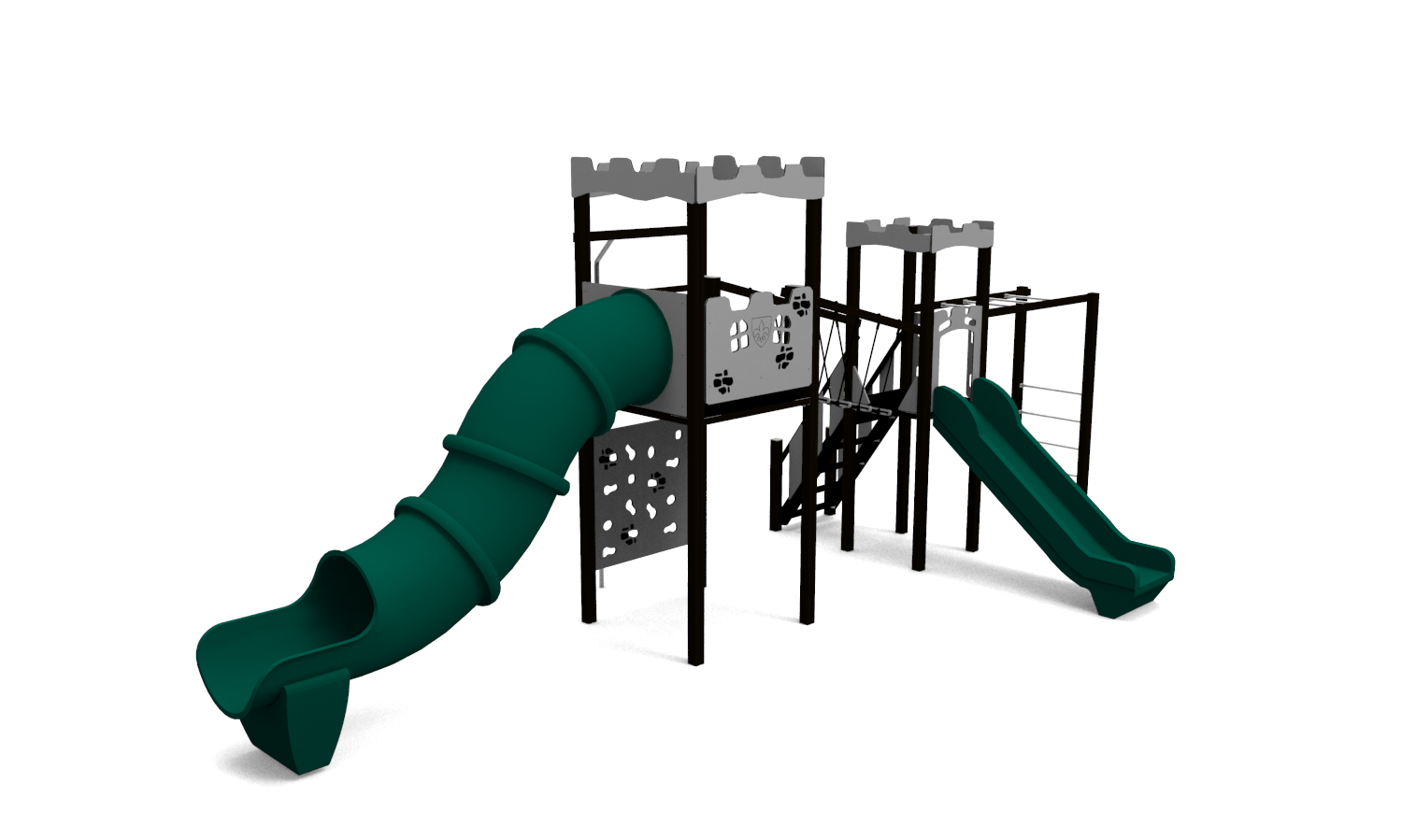

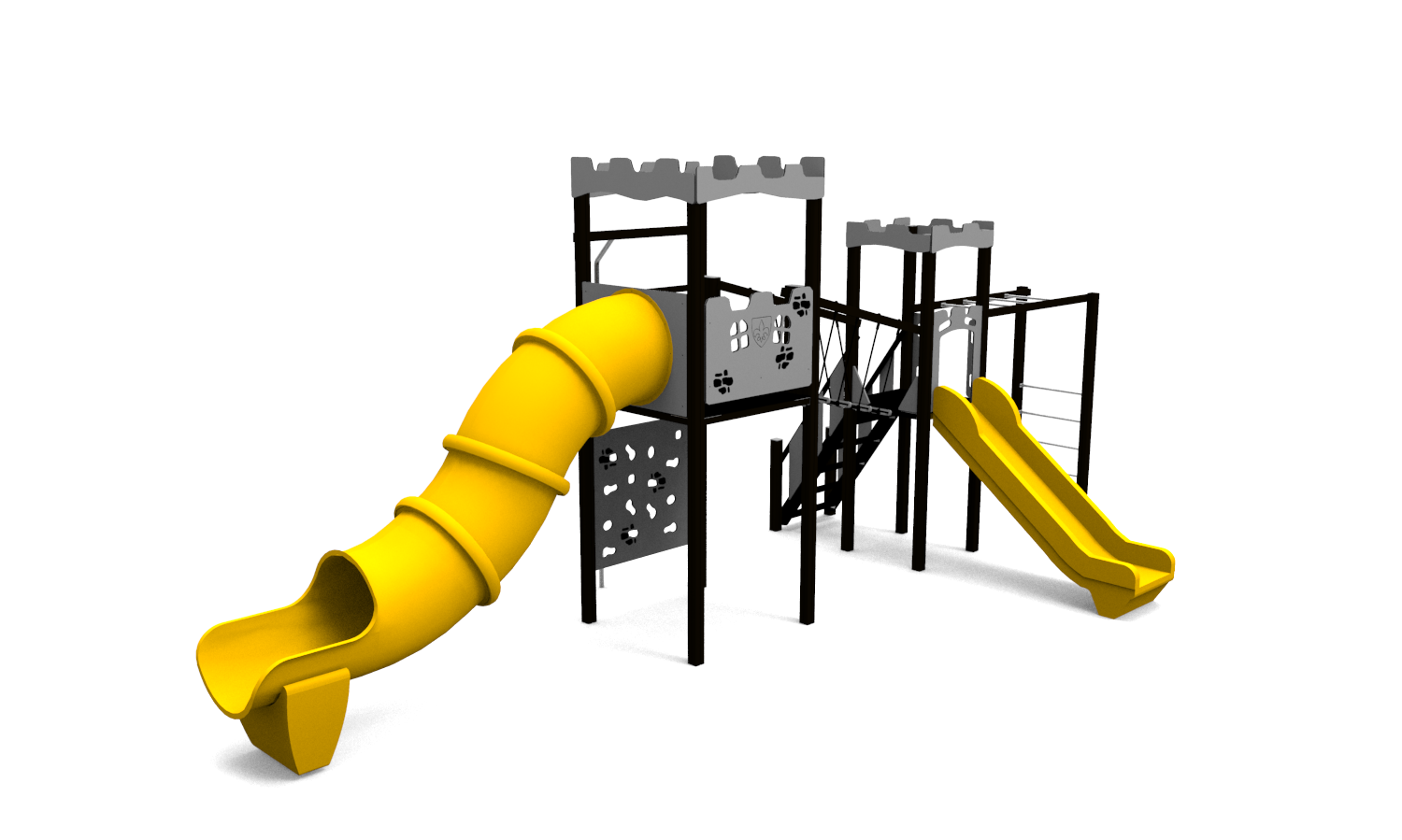

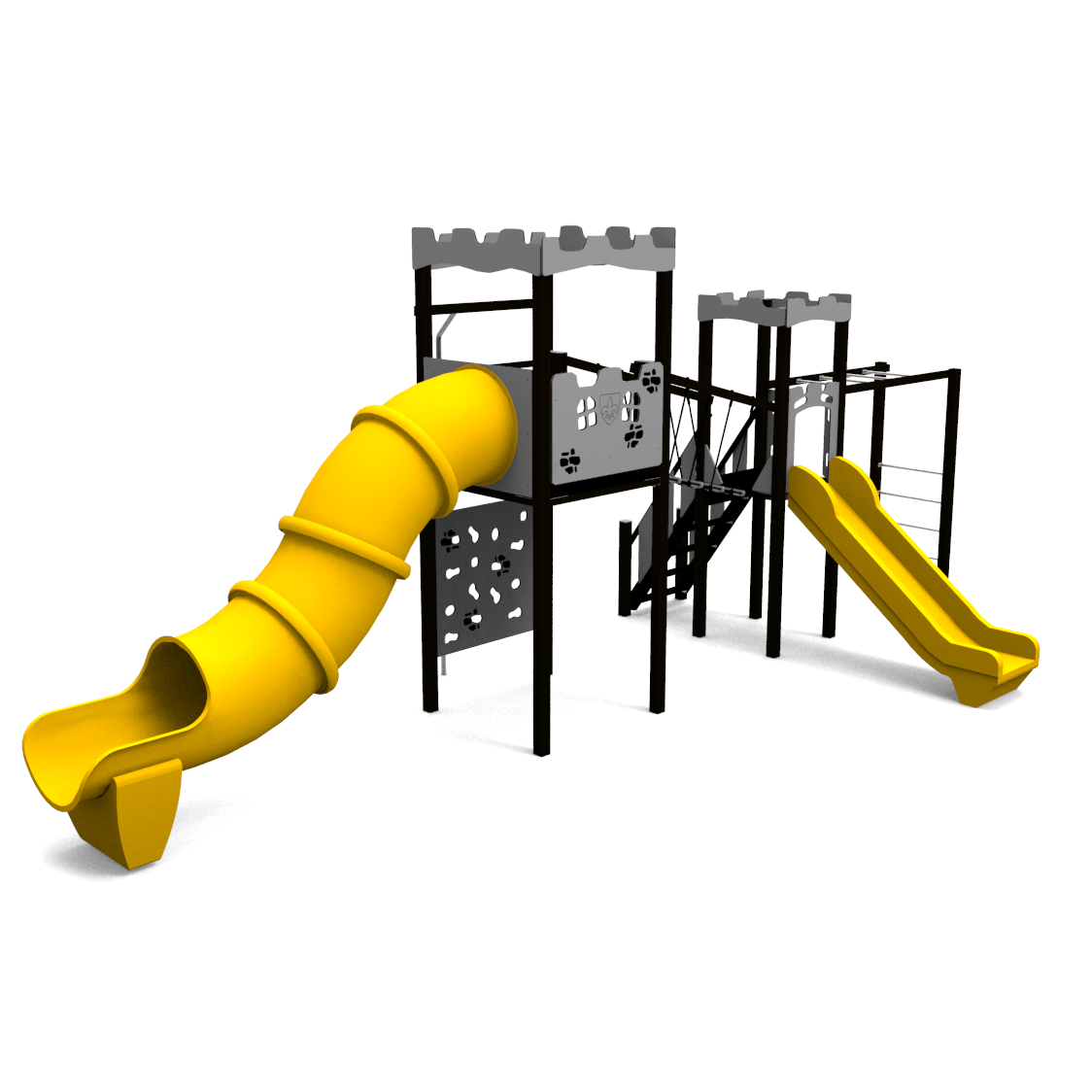

Double castle tower with tube slide, regular slide, rope bridge, monkeys bar, stairs, firemans pole and climbing wall.


                new
                    top product









                      BOYKO
















stock

















                      Product no.:

                            A7703

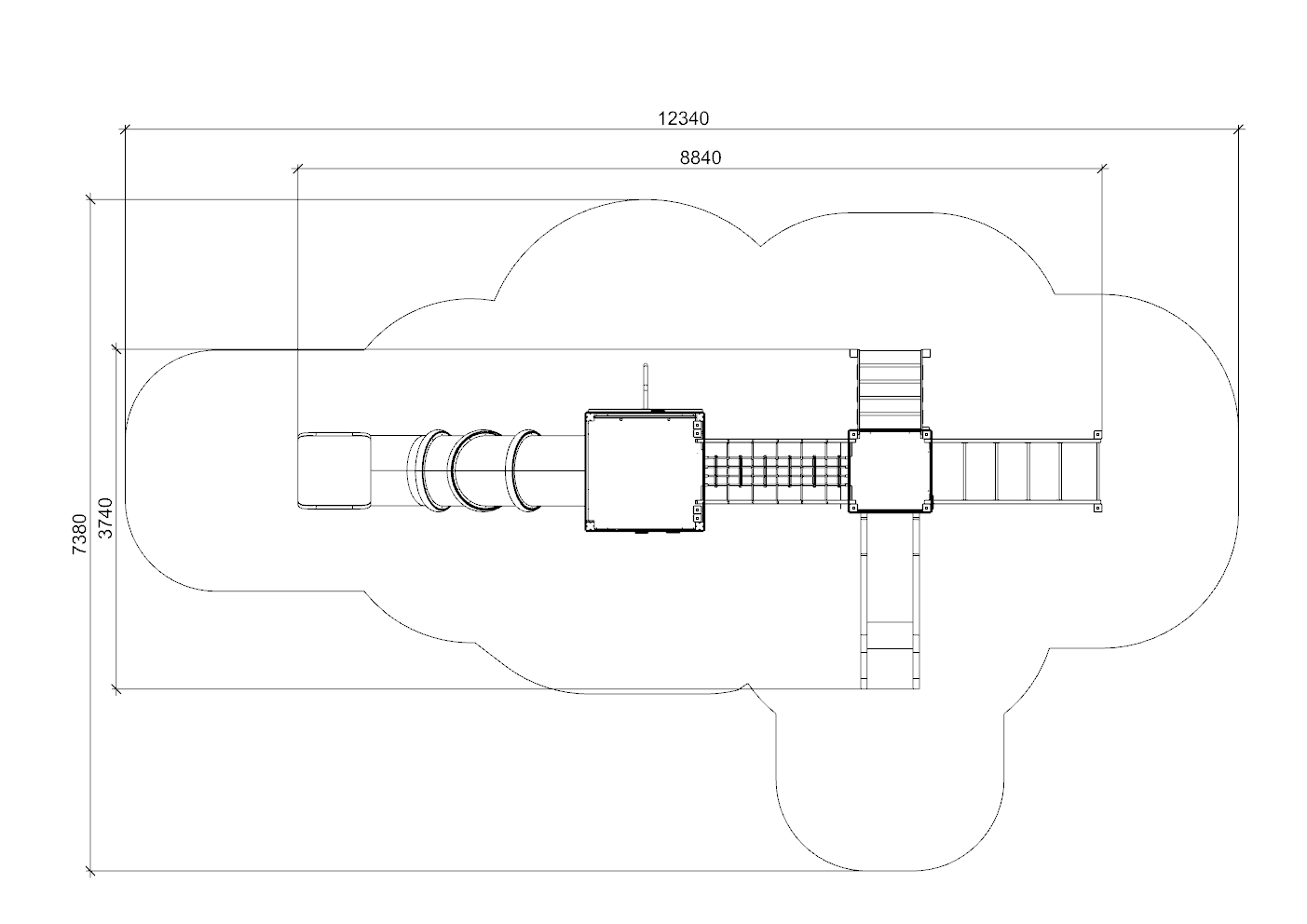

                        Dimensions:


                                    8840 x 3740 x 3560 mm






                        Safety area:


                                    12340 x 7380 mm






                        Critical fall height:


                                    1810 mm






                        User group:


                                    5-12 years






                        Platform height:


                                    1810 mm






















































Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platform: alulminium frame with anti-slip HDPE , Stairs: anti.slip HPL, Handles and other steel parts: Stainless steel or aluminium with eloxed surface, Roof and side panels: HDPE sheets wit 12, 15 or 19mm thickness. Slides and Tunels: Polyethylene, Screws: Stainless steel. Rope: 16mm polyamid rope with steel cord
